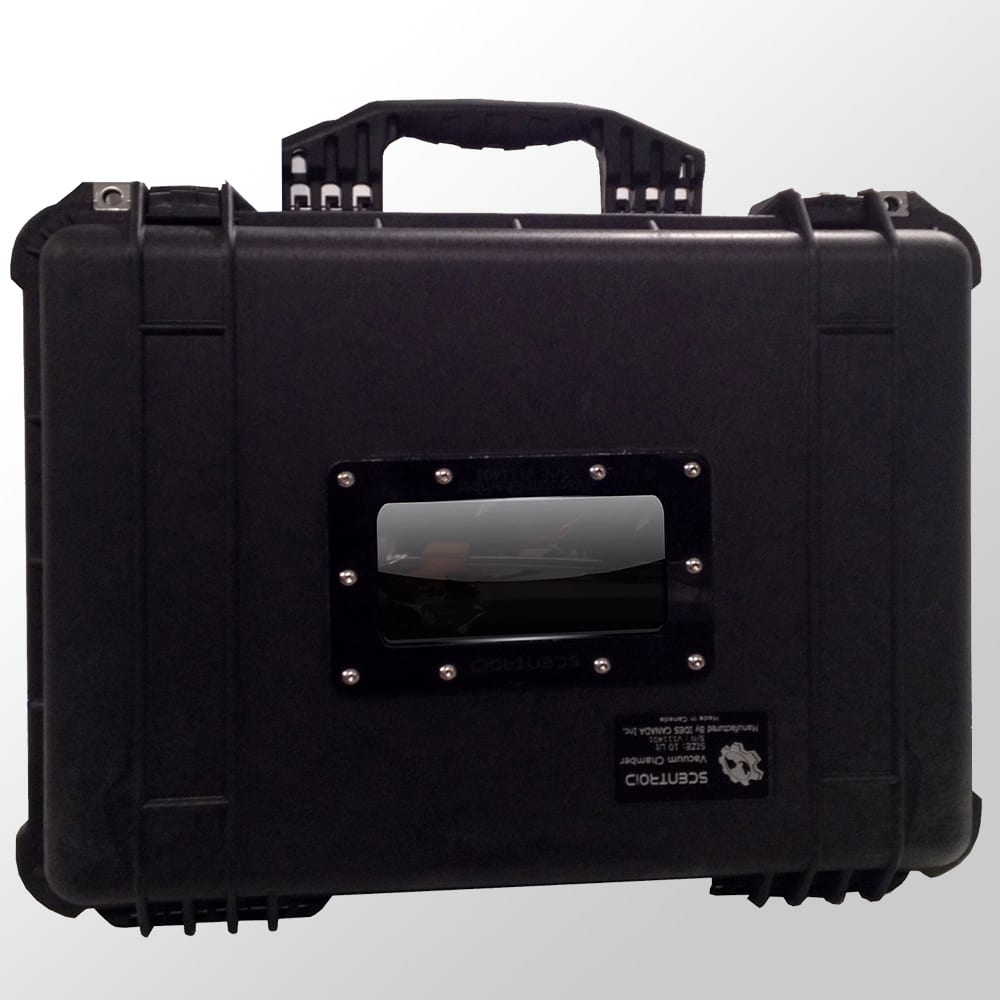

SCENTROID VC Vacuum Chamber Sampler

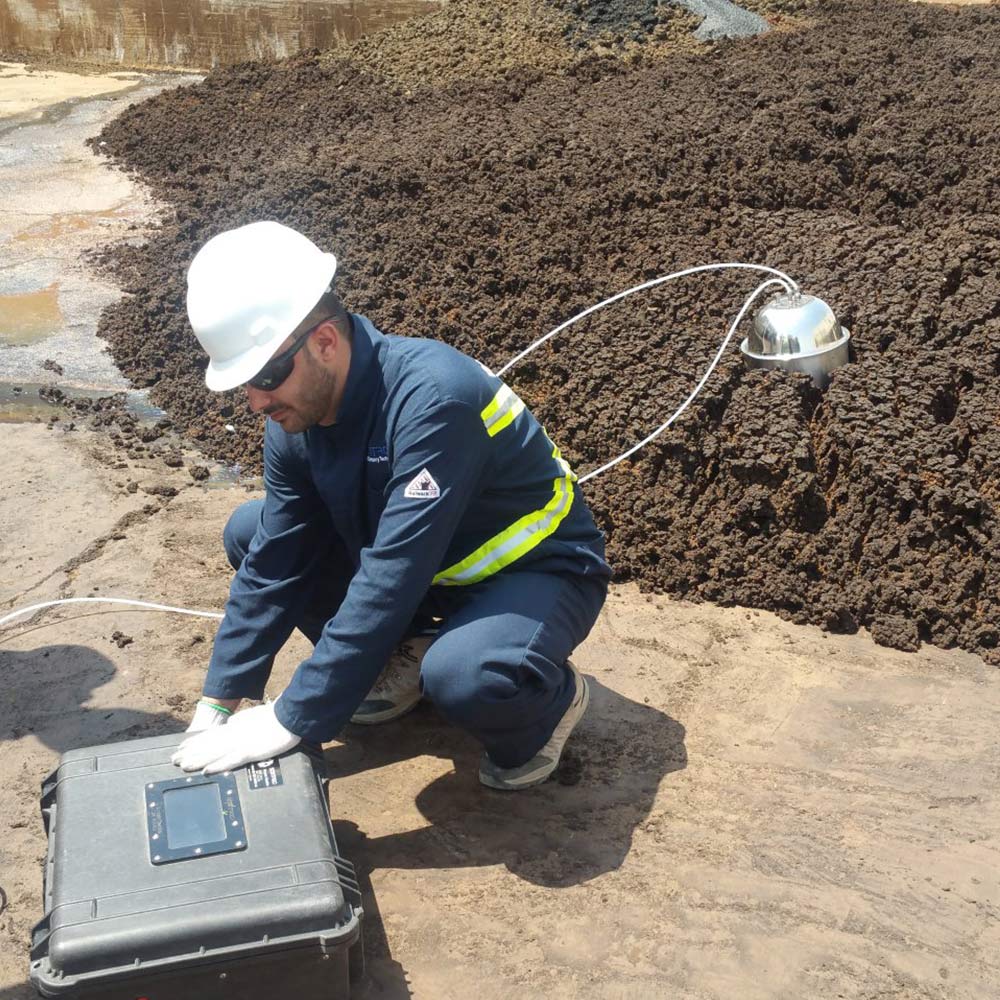

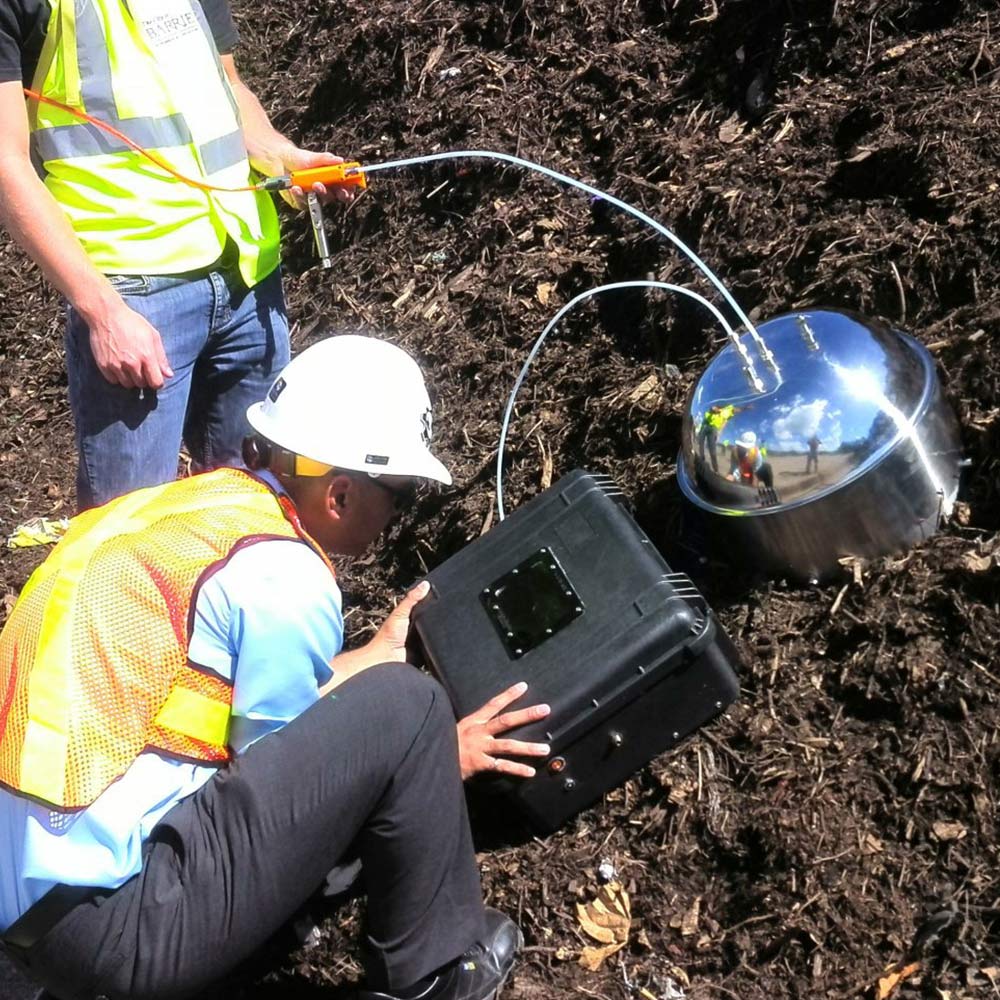

The Scentroid Vacuum Chamber is easy to use, portable, and serves as a cost-effective air sampling collection device. Vacuum chambers are used to pull samples directly without dilution from stack, ambient air, or other sampling devices such as flux chambers or wind tunnels.

Description



The Scentroid Vacuum Chamber is easy to use, portable, and serves as a cost-effective air sampling collection device. Vacuum chambers are used to pull samples directly without dilution from stack, ambient air, or other sampling devices such as flux chambers or wind tunnels.

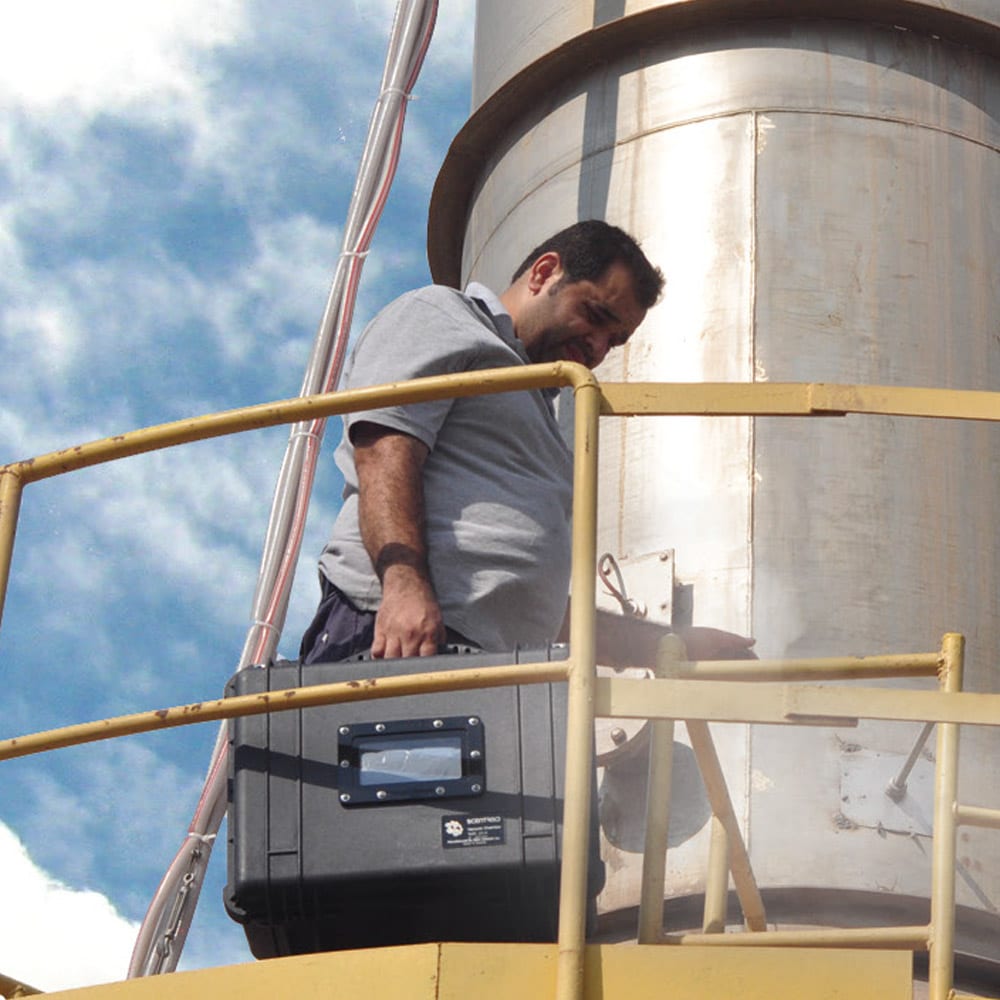

Available in multiple sizes to fit bags of up to 20L, 25L, and even 50L, the Scentroid Vacuum Chamber is for soil gas sampling, groundwater testing, stack sampling, hazmat testing, and U.S. EPA Methods 18, 0040, and ventilation studies.

The Vacuum Chamber Sampler (bag sampling chamber) uses a built-in miniature pump to create a vacuum of more than 18” HG inside the sample box. The 12V rechargeable battery is capable of sustaining more than 75 samples with a single charge and can be recharged using a 110/220V outlet or a 12V car outlet.

Vacuum Chamber Sampler Applications:

  • acquire a sample from ambient air
  • Aacquire a sample from flux chamber
  • acquire a sample from the static hood
  • acquire a sample from wind tunnel
  • acquire a sample from another source that will not create condensation within the sample bag.

Vacuum Chamber Sampler Operation Basics:

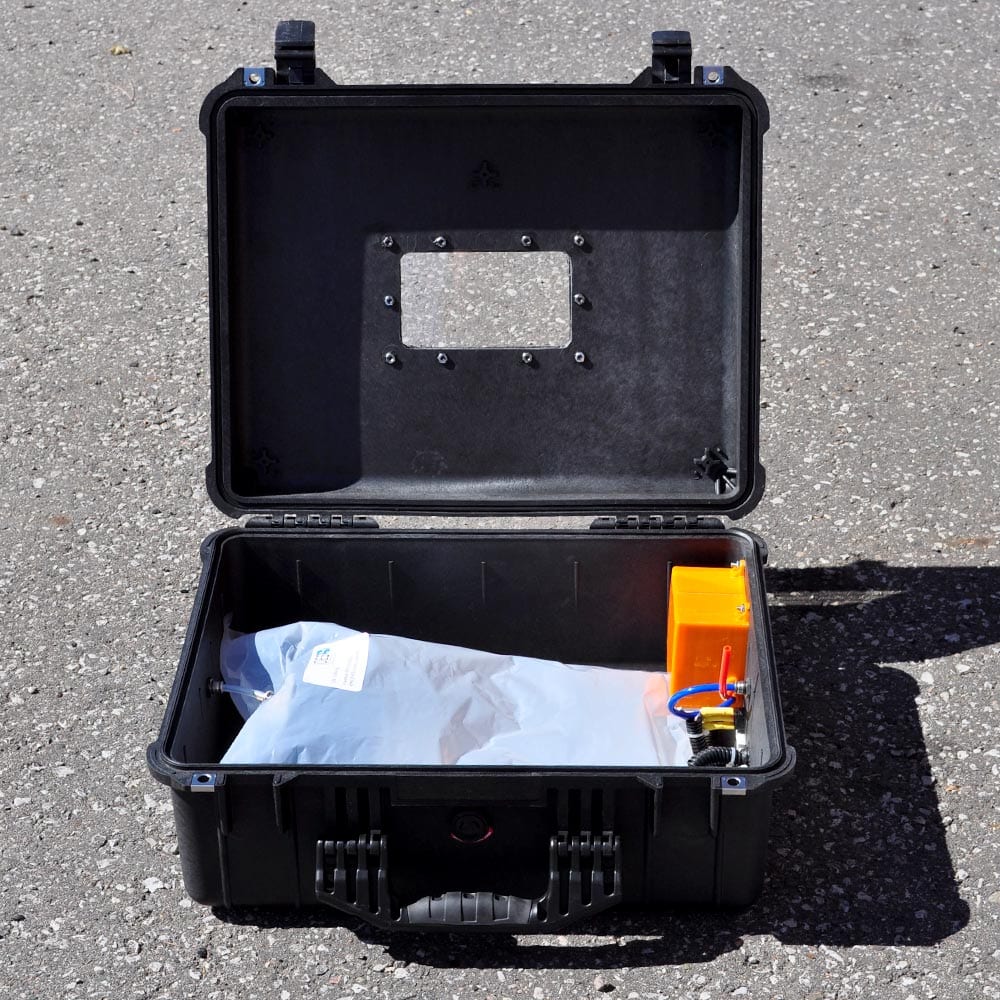

  1. open the vacuum chamber
  2. connect sample bag to the PTFE tube inside the chamber
  3. close the chamber and connect the external sample line to the sample collection device, or leave off to sample ambient air
  4. switch to sample function to draw in the sample air
  5. stop when the sample is half full and switch to purge routine to exhaust all lines
  6. switch to sample function again and fill the bag with sample air
  7. turn unit off and open the case
  8. close sample bag valve and remove it from the vacuum chamber sampler.
