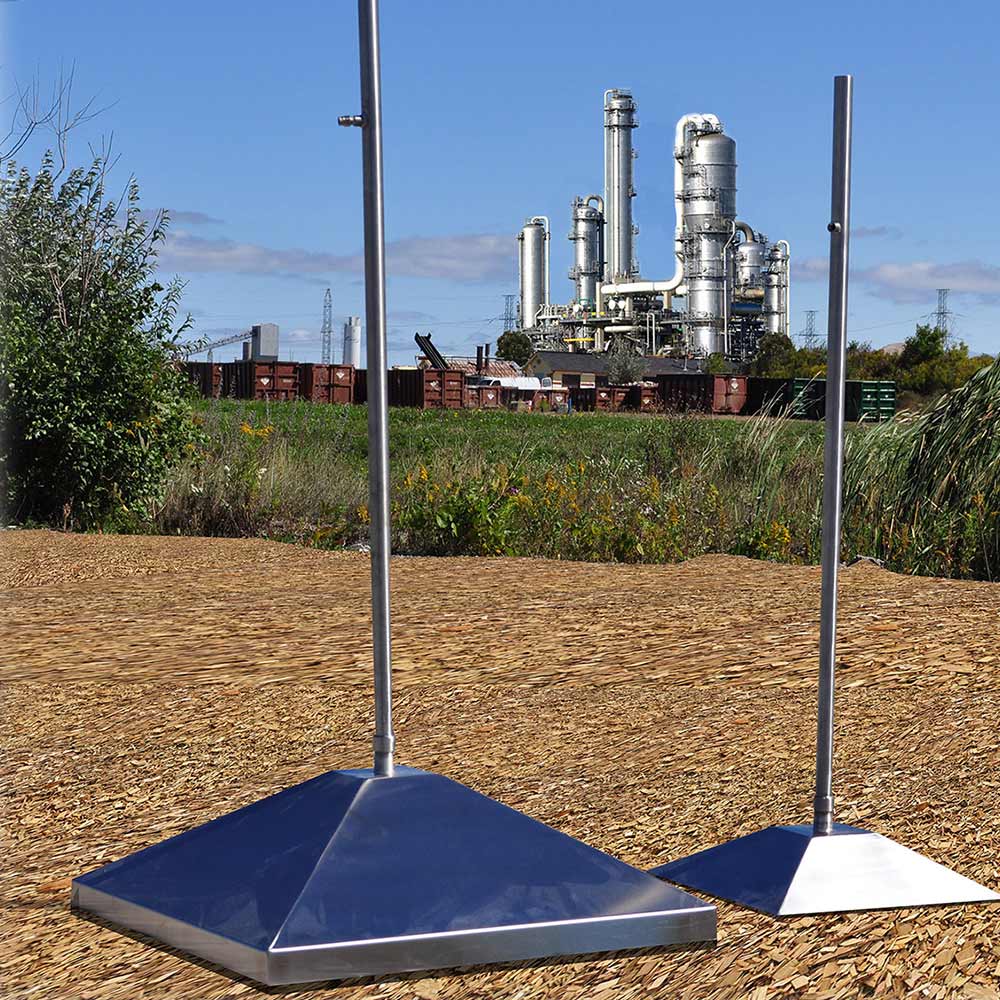

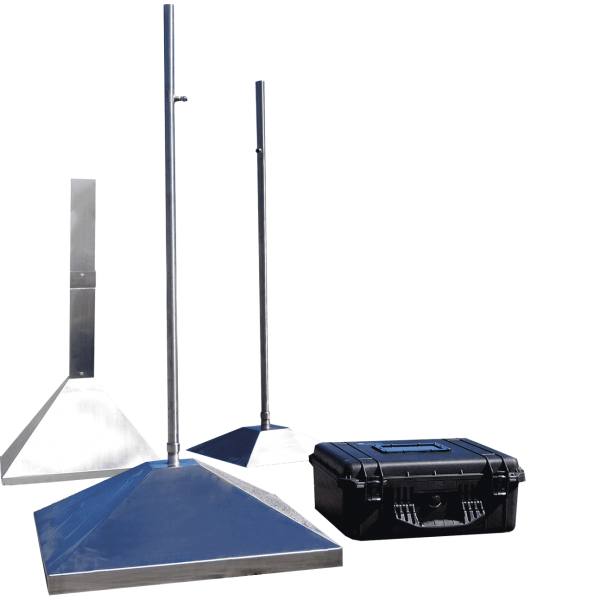

The Scentroid Static Hood sampler provides an easy to use and contaminate-free solution for taking air samples from bio-filter beds and other surfaces that have a positive air flow.

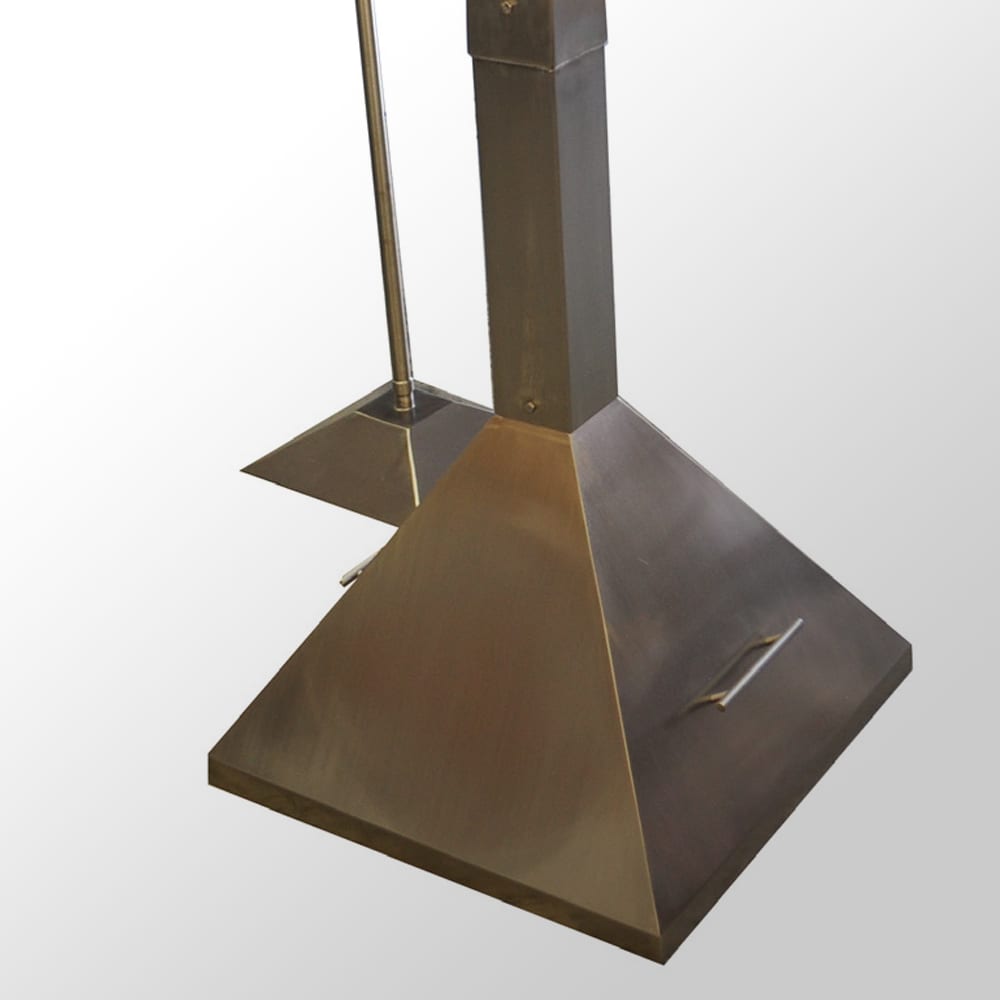

The Scentroid Static Hood sampler provides an easy to use and contaminate-free solution for taking air samples from bio-filter beds and other surfaces that have a positive air flow. The all stainless steel construction ensures easy decontamination. The stack disassembles for ease of transportation.
EPA Model SH50 SH100

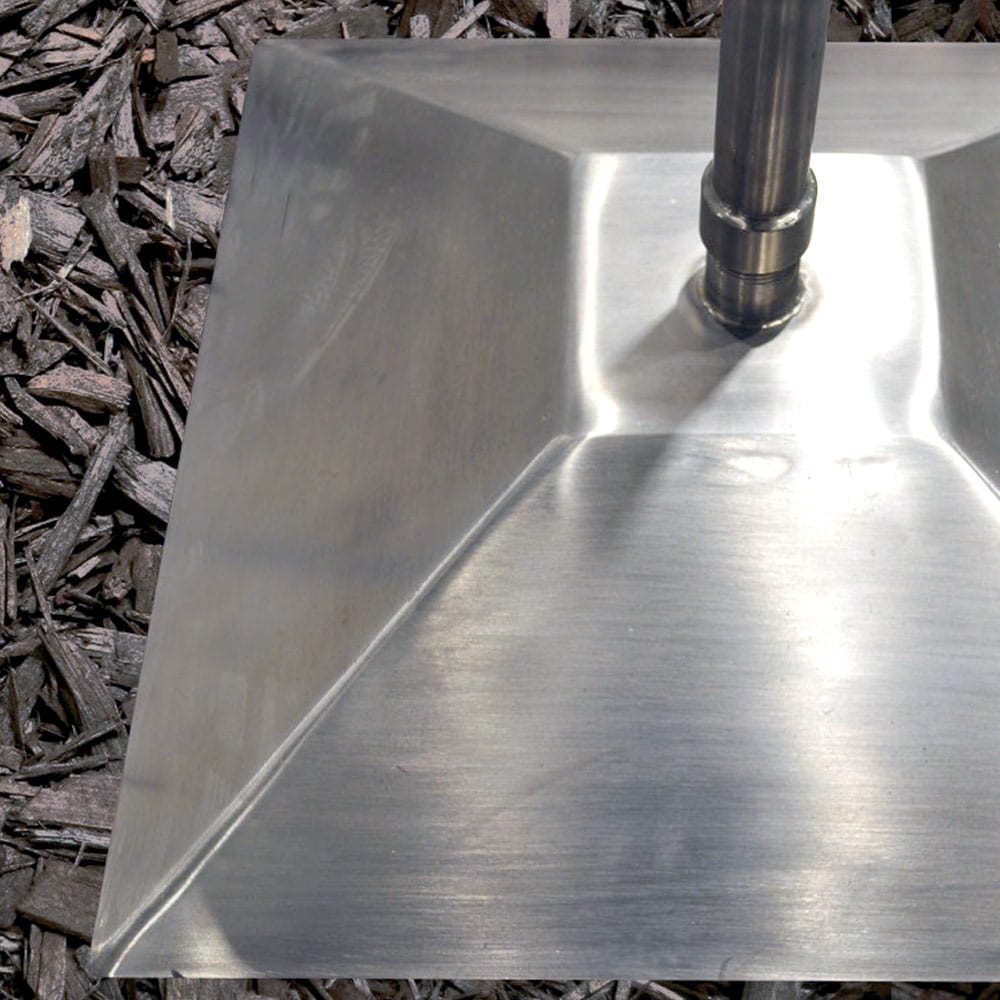

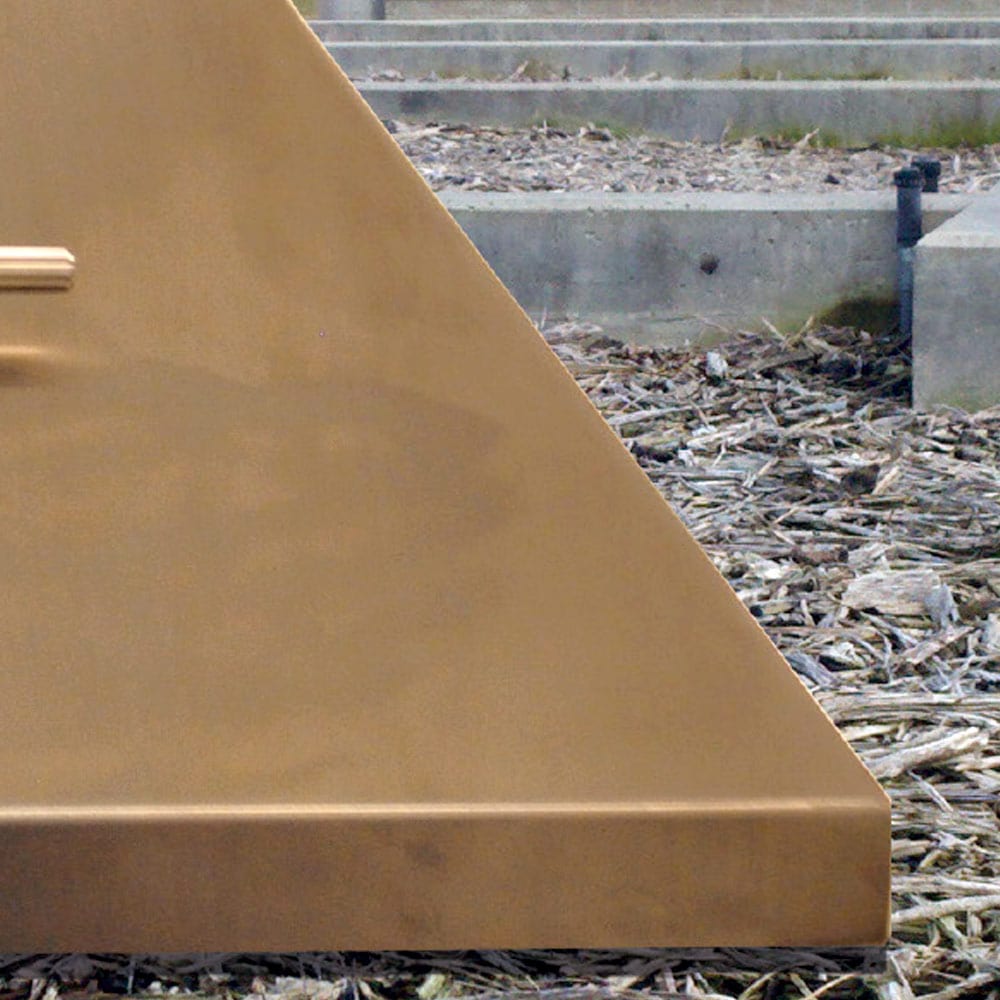

The scentroid 0.5 m2 sampler (optional VDI model of 1.0 m2 also available) is designed to the EPA guidelines. The solid stainless steel construction makes for rapid and easy deeply. The surface can be cleaned to ensure no cross contamination affects the samples.
To acquire a sample simply:
1. Place the static hood on the surface and firmly press down.
2. Wait for the sample to fill the hood three times.
3. Acquire the sample at half the rate of emission.
Portable Model

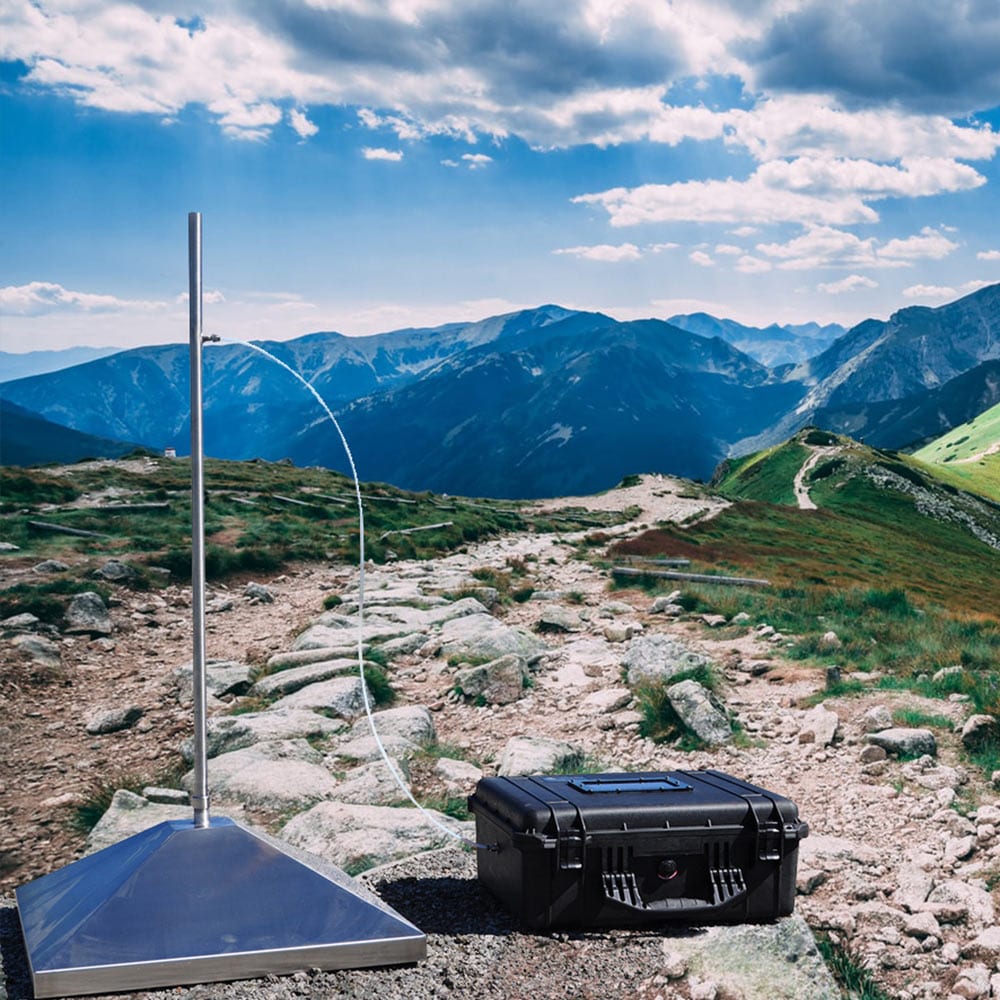

The 0.25 m2 model provides a smaller and more portable version to be used with the SM100 for assessing the effciency and health of a bio-filter.
The SM100 can be connected directly to the sample port of the Scentroid static hood for direct measurement.
ODMAP software can be used to plot and assess the health and effciency of the bio-filter.
