Scentroid SW60 is the next generation Wind Tunnel Sampler (AKA Ventilated Sampling Hood), used for sampling on solid or liquid surfaces with passive odour emissions
The Scentroid SW60 is the next generation of wind tunnel samplers (ventilated sampling hoods), used for sampling on solid or liquid surfaces with passive odour emissions in accordance with the EN13725 and VDI3880.

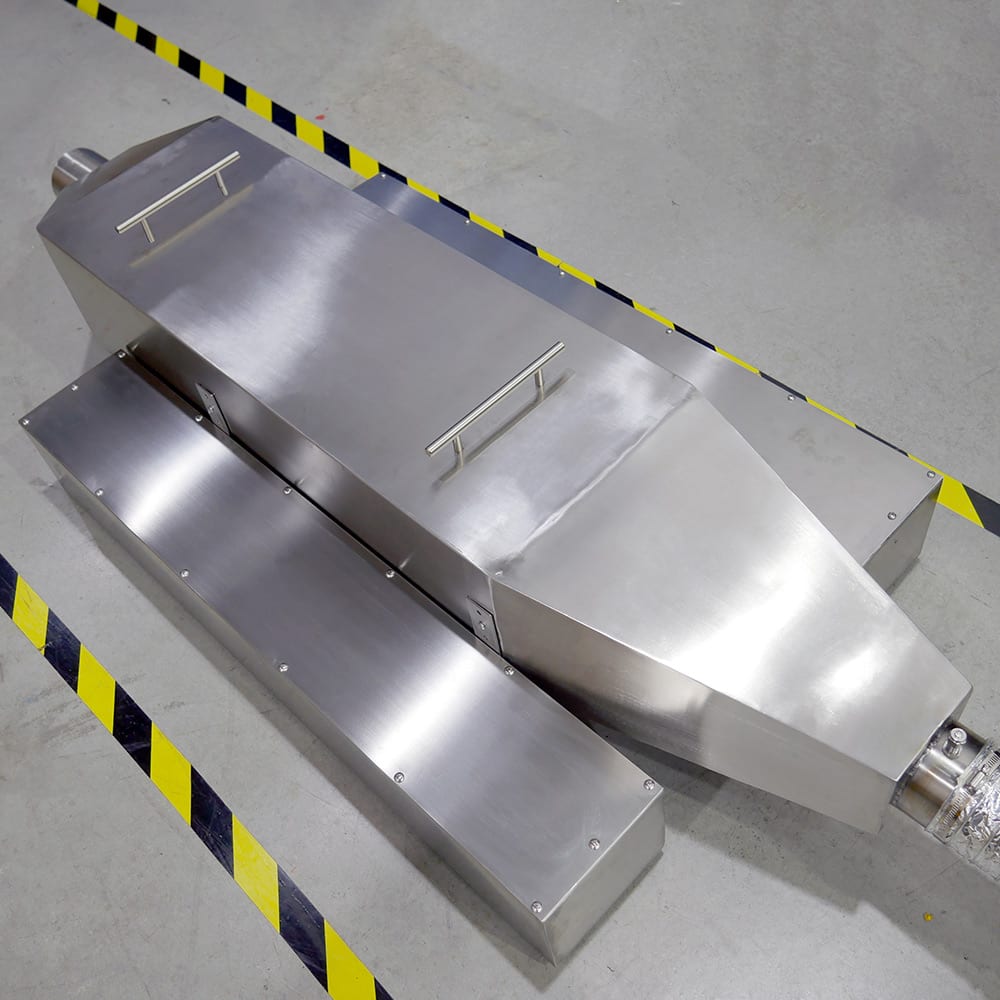

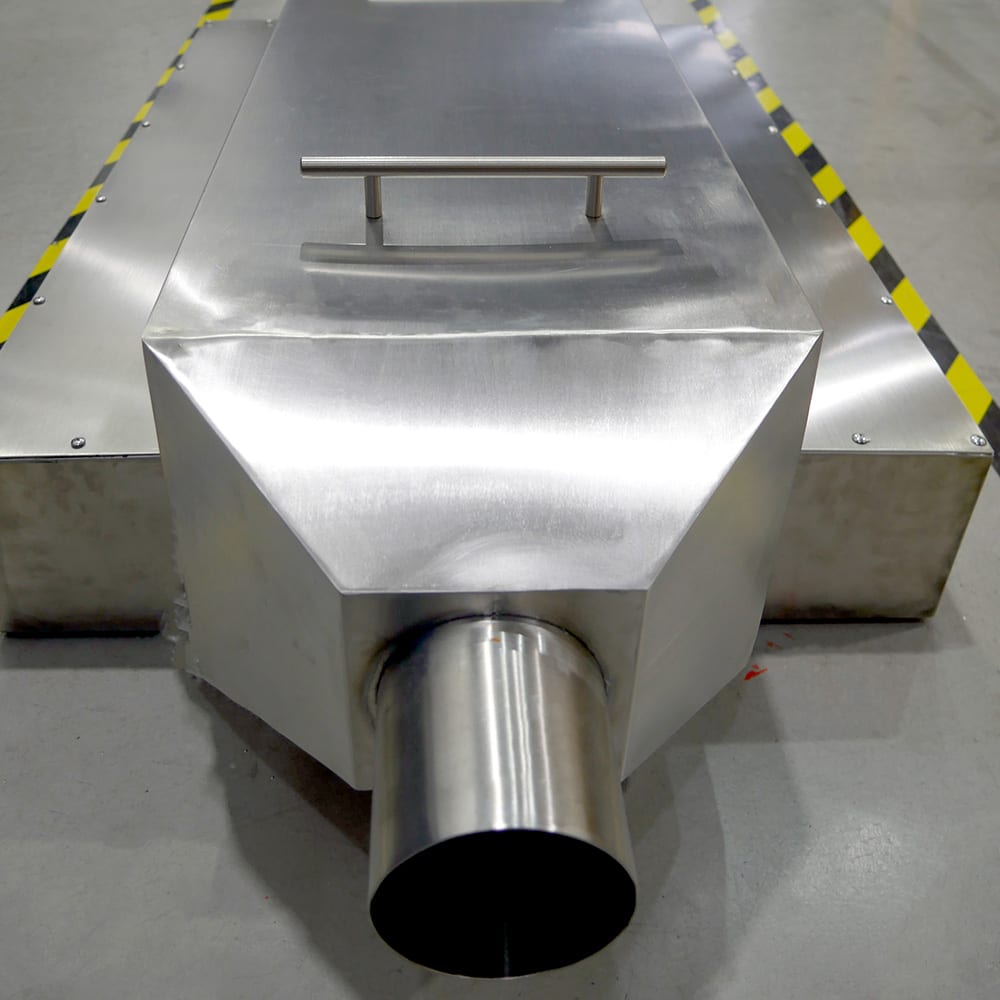

Scentroid’s wind tunnel sampler is made of state-of-the-art PTFE coated aluminum composite material that is both extremely rigid and ultra-light. The wind tunnel only weighs 10 kg resulting in it being very easy to handle by a single technician. Despite being extremely light, the composite material makes the SW60 Wind Tunnel Sampler tough enough to withstand the toughest working conditions.
Continuous Air Speed Monitoring with the Wind Tunnel Sampler:
Scentroid SW60 wind tunnel sampler has a built-in anemometer, which remotely monitors the exact wind speed within the tunnel. Data is logged and shown on any mobile tablet or phone. This not only significantly increases the accuracy of odour sampling, but also provides a means of setting the airspeed to the exact desired value.

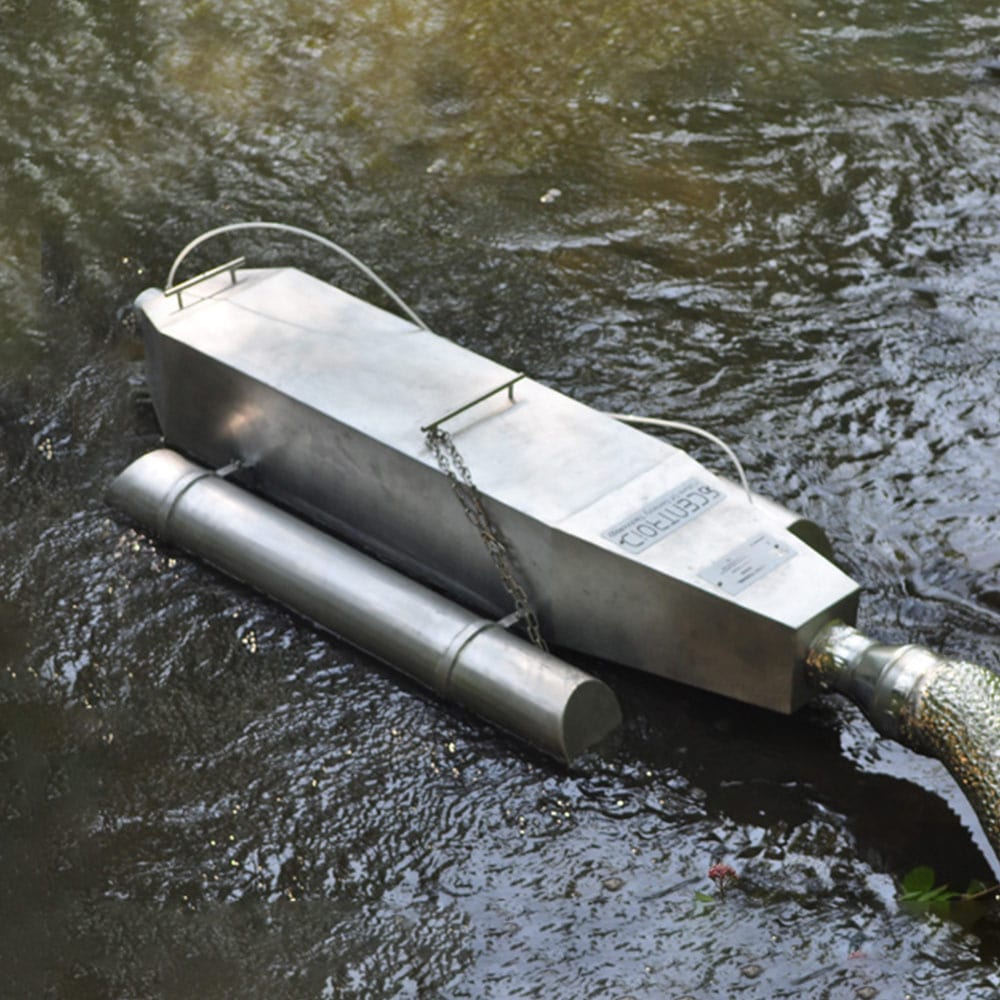

A complete self-contained solution. The Scentroid SW60 comes as a complete sampling solution. The kit includes the wind tunnel, the floaters, and the air supply.

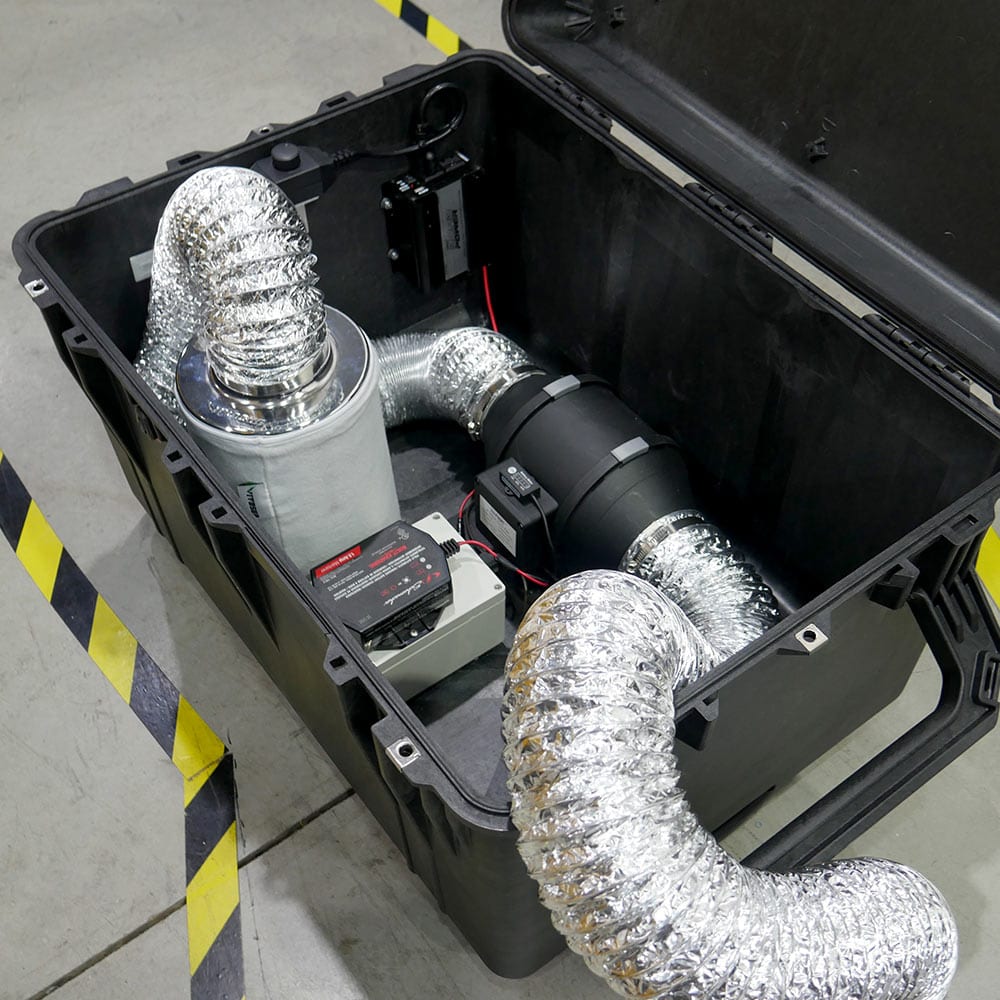

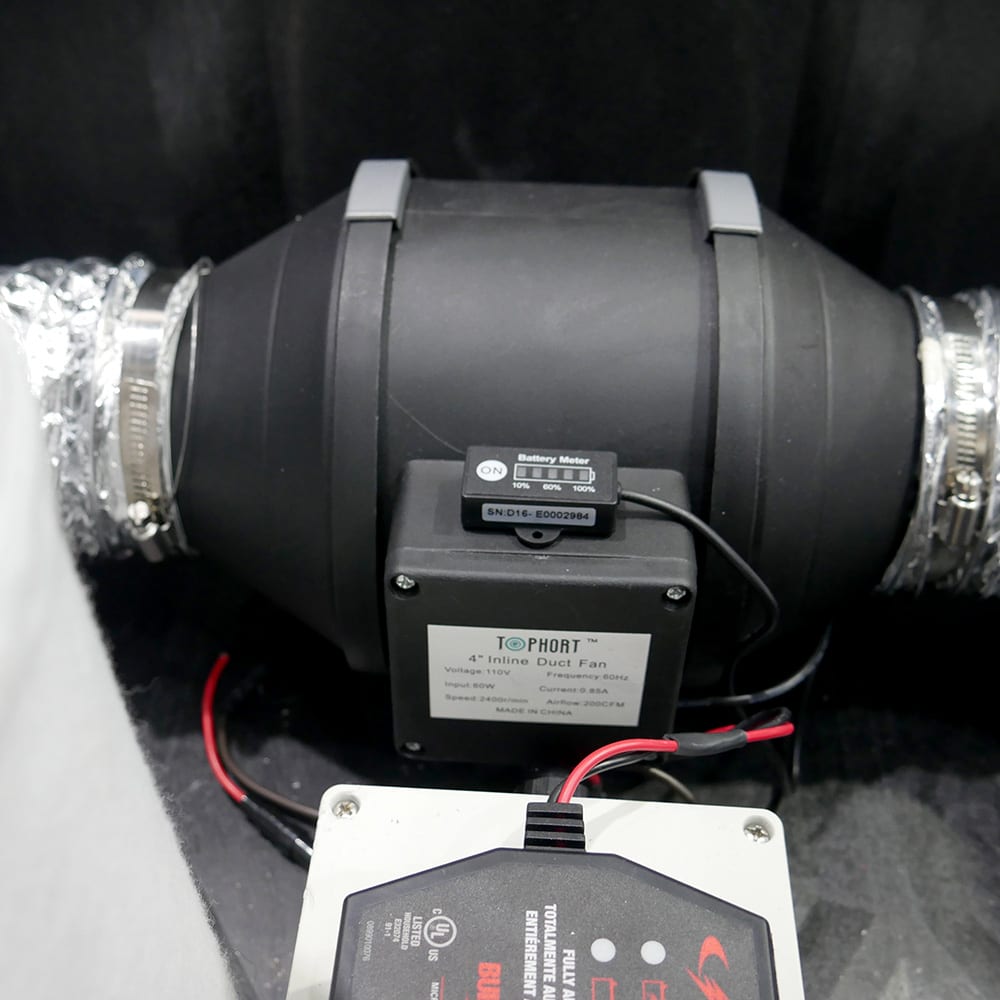

The air supply enclosed in a waterproof carrying case contains an activated carbon filter, a variable speed blower, and a battery pack. Simply connect the air supply to the tunnel and set the desired air speed.
SW60 Wind Tunnel Sampler Operational Guide:
- connect the air supply to the wind tunnel
- connect wind tunnel to a tablet for airspeed measurements
- connect the vacuum chamber to the sample port
- adjust airspeed to the desired value
- sample using the vacuum chamber
