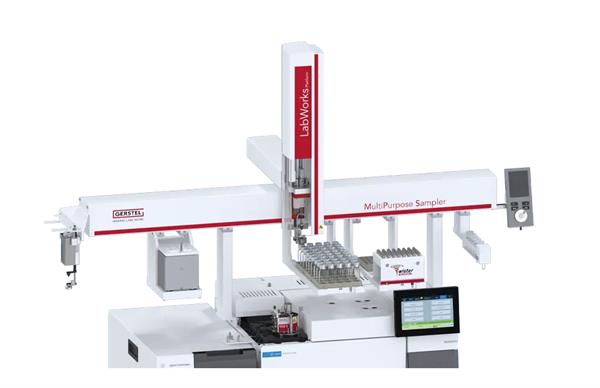

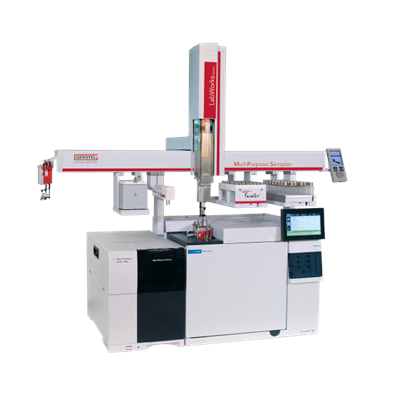

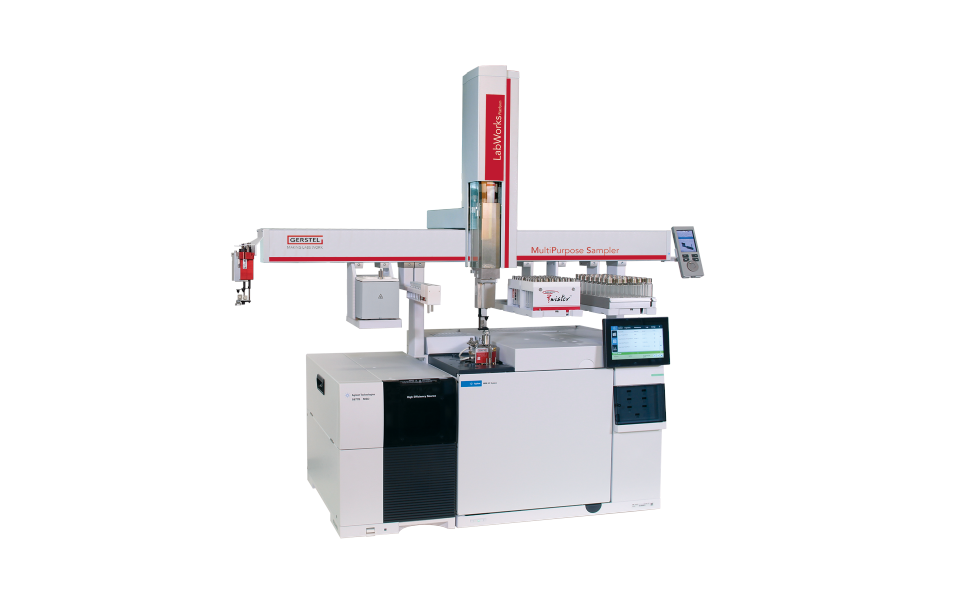

The GERSTEL MPS LabWorks platform is the only truly universal system for sample introduction in GC/MS.
lt provides unmatched capability and flexibility in
solving your critical challenges. There is no need to have a different instrument for
each technique. Liquid, Headspace and Thermal
Desorption are all included without the need for additional
bench space.
The MPS LabWorks platform features TrueTrap technology that provides non-discriminatory trapping of compounds, without the need for valves and transfer lines. This technology can be used with headspace, thermal desorption, SBSE and TF-SPME for true compound enrichment, achieving unsurpassed limits of detection.
The MPS LabWorks platform also offers sample preparation capabilities, such as adding internal standards, sample dilution, mixing, derivatization, heating, and generating calibration curves.
The standard platform includes: MPS robotic autosampler, TDU 2 Thermal Desorption Unit – CIS cooled injection system. It offers 10 automated sample introduction techniques, all controlled by GERSTEL Maestro software, which integrates seamlessly with Agilent software.
- Liquid lnjection
- Large Volume lnjection
- Headspace lnjection
- Multiple Headspace lnjection with Trapping True HS Enrichment
- Stir Bar Sorptive Extraction SBSE (Twister®)
- TF-SPME
- Direct Thermal Extraction of Solids
- Thermal Desorption of Sorbent Tubes
- Thermal Extraction of liquids in µ-Vials (ATEX)
- Sample Preparation.
The GERSTEL LabWorks Platform Basic can be expanded up to 20 additional techniques.
GERSTEL’s modular approach to upgrading allows you to “Future Proof” your investment so that you can continually solve your most critical challenges
Possible extensions:
- SPME
- SPME Arrow
- SPME HIT
- Agitator with with stirrer
- Dynamic Headspace
- Full Evaporative DHS
- Multi-Volatile Method (MVM)
- Dynamic Headspace – Large Vessel
- Micro SPE
- Pyrolysis - Pulsed
- Pyrolysis - Ramped
- Automatic Liner Exchange (ALEX)
LabWorks Advanced Automated Sample Preparation Techniques:
- Dilution
- Standard Addition
- Filtration
- Evaporation
- Weighing
- Mixing
- Centrifugation
- Multiple SPE options
- Sonication
Additonal modules for advanced problem solving:
- Olfactory Detection Port (ODP)
- Preparative Fraction Collector (PFC)
- Cold Trapping System (CTS) – in oven
- Multidimensional 1D/2D GC for Heartcutting
