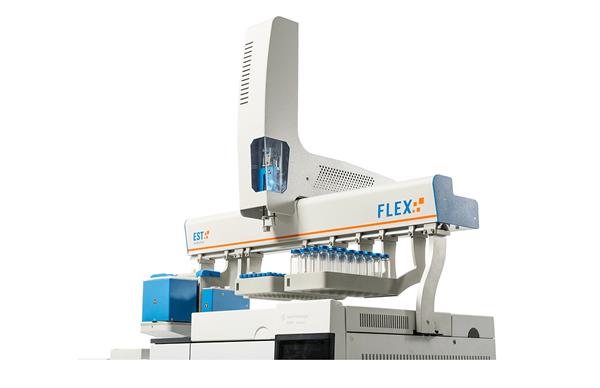

EST analytical's FLEX 2 robotic sampling platform is a multifunction X,Y,Z autosampler for GC and GC/MS, designed for sample preparation and introduction: liquid injection, headspace and SPME.
The FLEX 2 autosampler delivers results laboratories can count on. In particular, the Prep Ahead function allows samples to be prepared in advance while GC analysis is in progress, improving productivity and system utilization.
Key features:
-
MTX - Multi Tool Exchange: The MTX device automates the change of extraction/injection technique within the same sample sequence; this allows switching from liquid injection to headspace or SPME, without the need to stop the sequence and without operator supervision.
The syringe change option enables and simplifies the automation of internal standard addition and dilution, optimizes productivity, increases accuracy and improves process safety.
The MTX device automates both the transition from liquid injection, headspace and SPME applications, as well as sample introduction into the GC.
- Derivatization on fiber or with reagent addition to the sample prior to extraction.
- Internal Standard Addition
- Accurate and repeatable extraction and dilution
- Liquid Injection
Liquid
- Injection Range:
- 0.5 μL to 10 μL with standard 10 μL syringe
- 50 μL to 500 μL with optional 500 μL syringe
- Inject standard or large volumes up to 500 μL
- Introduce liquid sample with the ability to control the injection rate from ultrafast to very slow for optimized and reproducible results
- Cooled trays available
- Headspace Injection
- Headspace Injection Range:
- 100 μL to 2500 μL with standard 2.5 mL syringe
- 100 μL to 1000 μL with optional 1.0 mL syringe
- 500 μL to 5000 μL with optional 5.0 mL syringe
- Orbital (traditional) and rocking:
- 6 heated positions for 2, 10, or 20 mL vials
- Temperature range from ambient to 200 °C
- Orbital shaking speeds 120 to 750 rpm
- Oscillation shaking frequency 190 Hz
- Automated SPME: Flex 2 can be configured for traditional SPME analysis and/or direct immersion analysis.
Heated Needle/Fiber
- Conditioning Station:
1 heated station for needle or fiber conditioning
Temperature range from ambient to 350 °C for fiber conditioning
- Temperature range from ambient to 150 °C for needle conditioning
- Gas exhaust port
Single
- Magnet Mixing Station: 1 heated station for sample heating
- Ambient to 150 °C
Mixing speed from 380 to 725 rpm
- MFX - Multi Fiber Exchange: The MFX option extends the potential of SPME automation by allowing automatic fiber exchange within a sequence. The MFX device retains all the available options of the standard SPME, adding the ability to use multiple fibers within the same analytical sequence and/or on the same sample, without the intervention or supervision of an operator.
The fibers are housed in a special tray that preserves their efficiency, avoiding diffusion phenomena from and towards the fibers themselves and, consequently, loss of adsorbed analytes and contamination of the sample.
Each position of the fiber tray is equipped with a needle closing system: this feature expands the SPME application also to off-line sampling.
It is possible to install multiple modules of 6 positions, reaching up to the automation of the change of 24 fibers on the same sampler.
