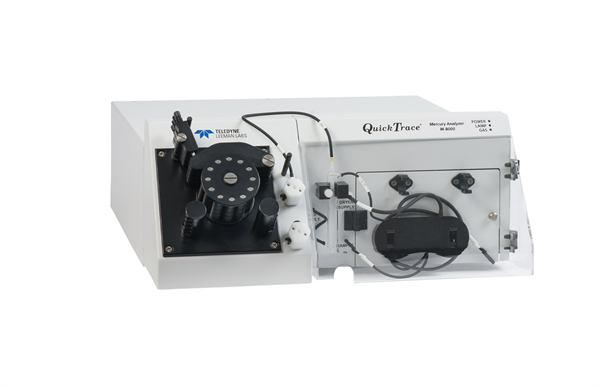

The Teledyne QuickTrace® M-8000 Cold Vapor Atomic Fluorescence (CVAF) mercury analyzer is ideal for ultra-trace to sub-mg/L mercury quantitation.
Due to the high sensitivity of the M-8000, it easily achieves the ultra-trace detection limit of <0.05 ng/L total mercury that is demanded by customers following EPA method 1631.
The QuickTrace® M-8000 is also versatile enough to analyze samples >400 µg/L without dilution in a research or industrial setting.
The QuickTrace® M-8000 mercury analyzer supports three software selected modes of operation (without hardware or tubing configuration changes) to quickly match your analytical requirements. When a method is selected in the software, the instrument switches between ultra-trace analysis and low mg/L analysis, saving method configuration time and eliminating costly mistakes. Modes include:
- Cold Vapor Atomic Fluorescence Spectroscopy (CVAFS)
- Cold Vapor Atomic Fluorescence Spectroscopy Single Gold Trap Amalgamation (CVAFS-SGTA)
- Cold Vapor Atomic Fluorescence Spectroscopy Double Gold Trap Amalgamation (CVAFS-DGTA).
Features
:

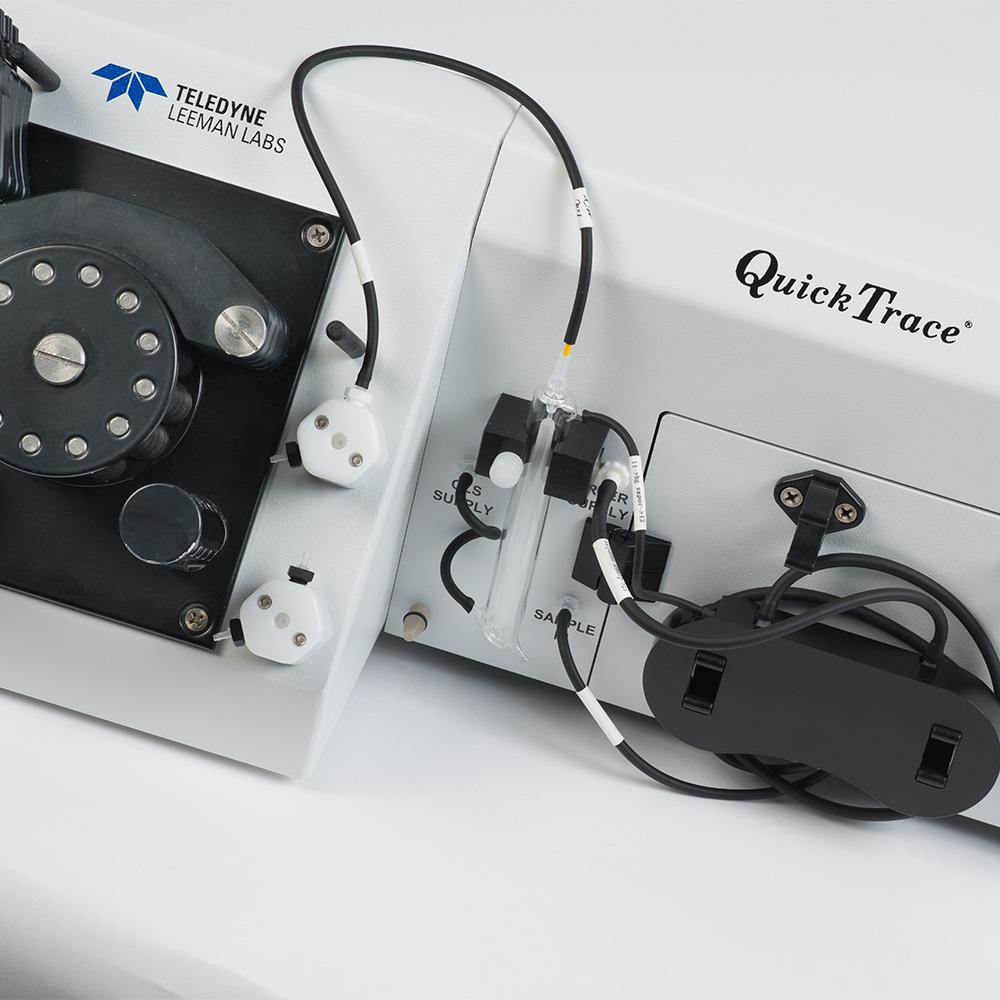

- Non-foaming Gas Liquid Separator (GLS) with overflow prevention system
- Automatic end of run and inactivity standby routines
≤ 0.05 ng/L instrument detection limits
- Advanced contamination control, over range and smart rinse features
- Intuitive gas controls eliminating air infusion into the system during sample probe movements during mode 2 and 3 analysis
EPA 1631 and EPA 245.7 compliant (gold amalgamation modes)
- “Smart Rack” technology
12-roller 4-channel peristaltic pump
- Sample volume 0.5 mL to > 50 mL
- Unlimited QC sample positions.
Performance:
- Ultra-trace Instrument Detection Limit (IDL) (≤0.05 ng/L)
- Linearity greater than four orders of magnitude
- Dynamic range <0.05 ng/L to >400 µg/L.
Methods:
- EPA Method 245.7
- EPA Method 1631
- SW 846-7474
- EU Methods: Din ISO 16772
- EN-12338
- ISO 17852
