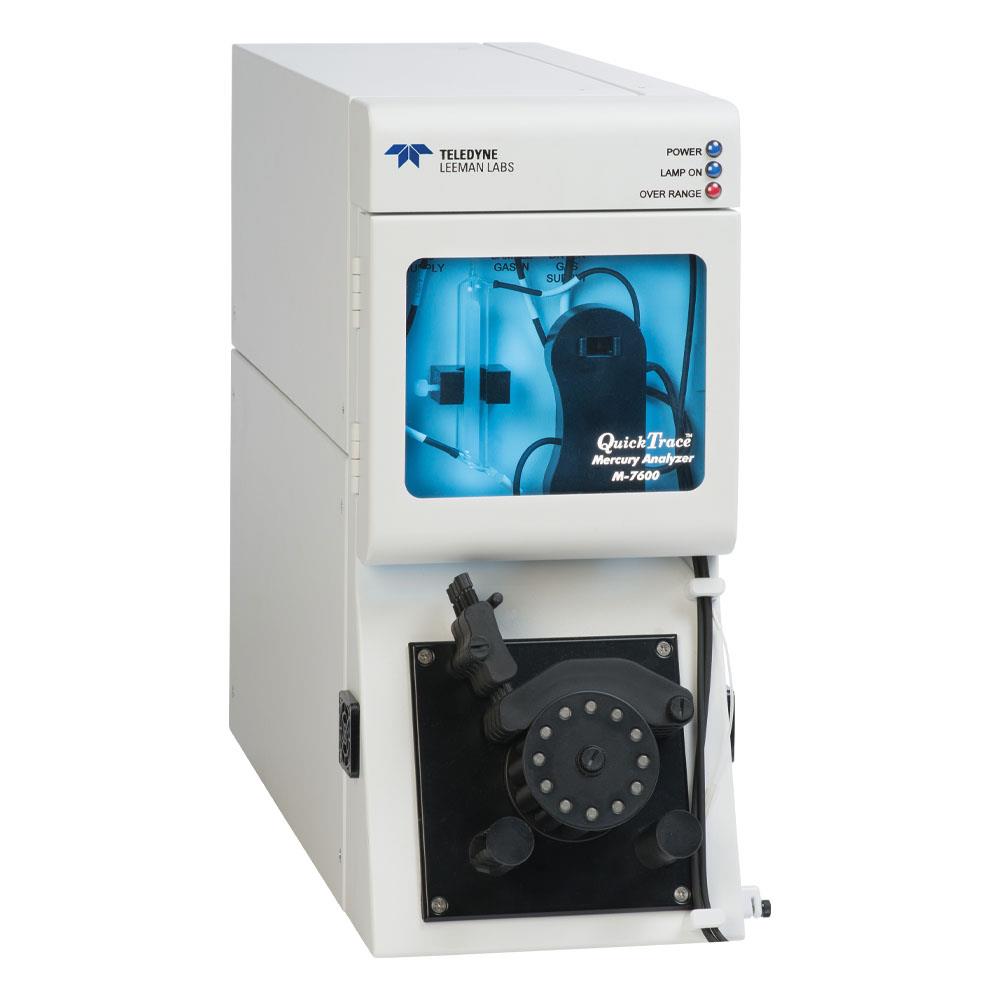

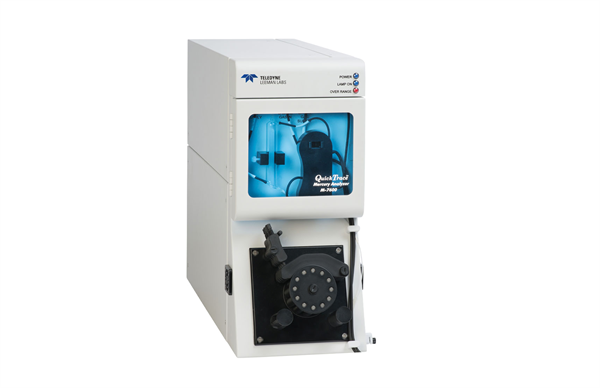

The Teledyne QuickTrace® M-7600 Cold Vapor Atomic Absorption (CVAA) Mercury Analyzer easily achieves the ultra-trace mercury detection limit of <0.5 ng/L.
The QuickTrace® M-7600 is ideal for ultra-trace to sub-mg/L mercury quantitation. The M-7600 is designed for routine and research use in a variety of settings, including environmental laboratories, industry, and research institutes, for virtually any aqueous acidified sample.
The QuickTrace® M-7600 is used to analyze samples that include water and waste-water, soil and sediment, and biological tissues and fluids.
The QuickTrace® M-7600 mercury analyzer is also versatile enough to analyze samples > 500 μg/L without dilution. The QuickTrace M-7600 is capable of switching between low mg/L and ng/L analysis without hardware or tubing configuration changes.
Features:

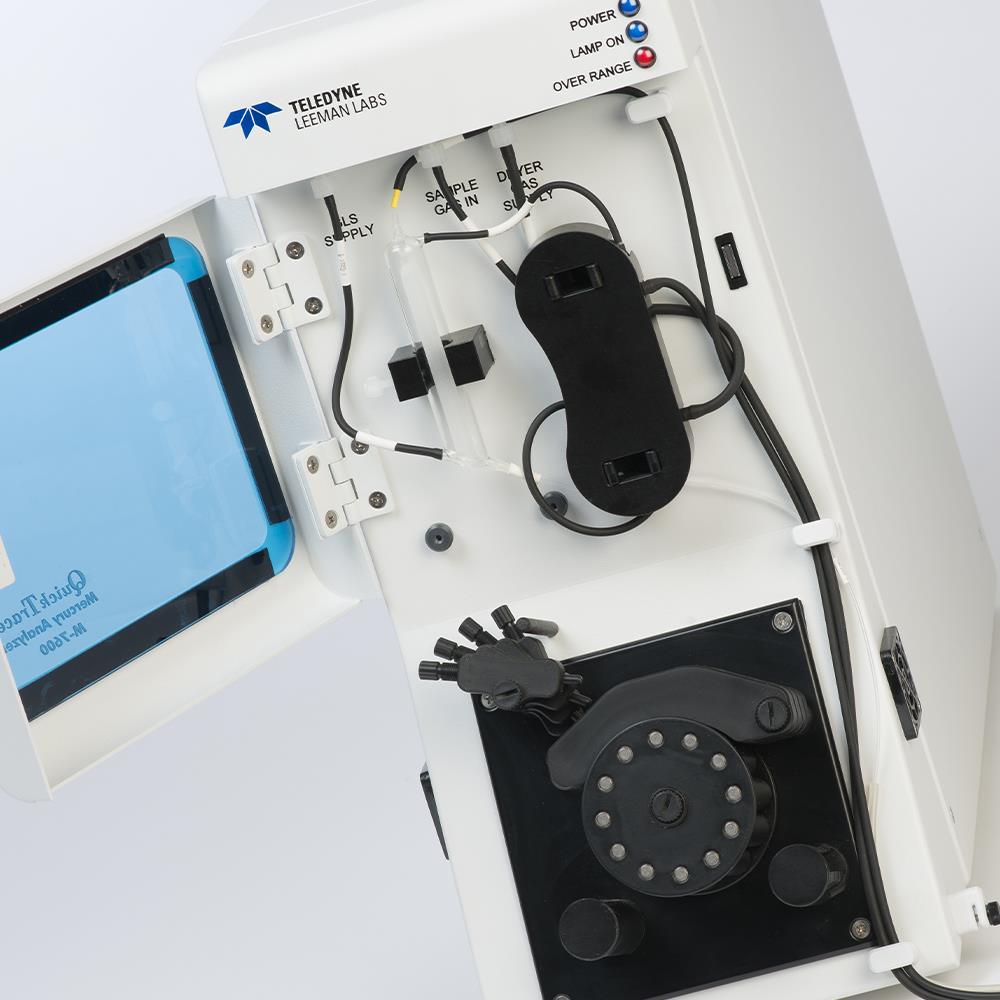

- Non-foaming Gas Liquid Separator (GLS) with overflow prevention system
- TCP/IP communications per laboratories preferences
- Advanced contamination control, over range and smart rinse features
- Superior baseline stability with double beam optics
- Ozone free low vapor pressure mercury excitation lamp

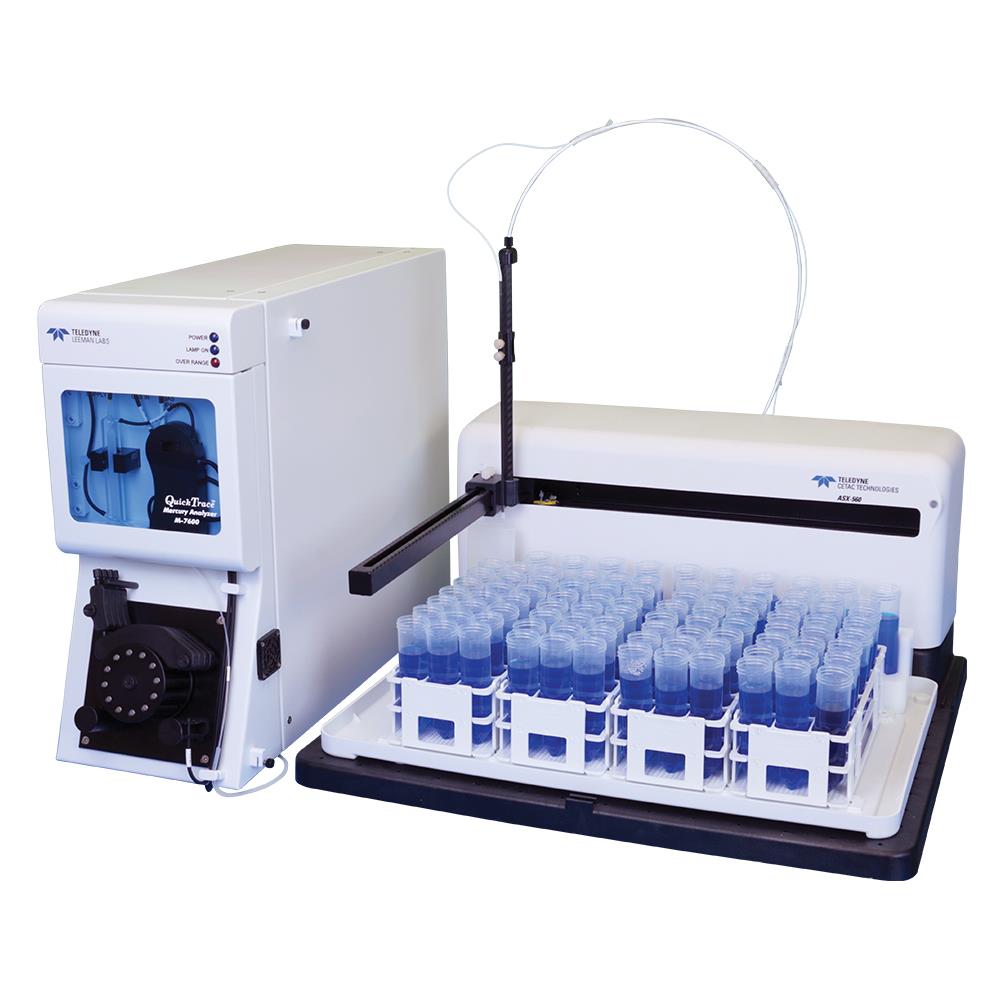

- Analyze samples with or without an autosampler
- Unlimited QC sample positions
- Automatic end of run and inactivity standby routines
12-roller 4-channel peristaltic pump
- Sample volume 0.5 mL to > 20 mL
- High capacity mode of < 60 seconds per sample
Intuitive
- QuickTrace® software.
Performance:
- Excellent short and long term stability are found in our QuickTrace® M-7600 CVAA analyzer
- Less than 0.3 ng/L instrument detection limits are typical for this analyzer while utilizing less than 4 minutes of sample time and less than 25 mL of sample.
-
Ultra-trace detection limits (< 0.5 ng/L IDL)
- Linearity greater than 4 orders of magnitude
- Dynamic range < 0.5 ng/L to > 500 μg/L.
Methods:
- EPA Method 245.1
- EPA Method 245.5
- SW 846-7470
-
SW 846-7471
- ASTM Method; D3223, D3624, D3684, D6414, and D6784
- EU Methods; Din ISO 16772, EN-13806, EN-16175-1, and ISO 12846.
