The GasMix™ and LiqMix™ lines are AlyTech's innovative automated systems designed to mix or dilute vaporized gases and liquids to create customized gas mixtures on-site, suitable for specific laboratory needs and applications such as calibration gas standards or synthetic atmospheres.
These versatile solutions are available in compact, benchtop, rack-mounted or portable formats

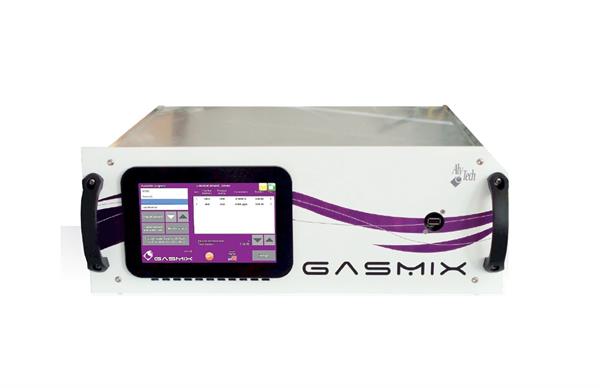

The GMRack is the industrial version of the most popular Aiolos III laboratory gas mixer/diluter.
This version of the GasMix is designed for applications outside the laboratory.
Compatible with standard 19" rack mounting, this system can accommodate up to 6 gas channels to prepare calibration gas mixtures directly on-site or inside vertical analysis units.
GasMix™ GMRACK Benefits:
-
Industrial version of GasMix™ mounted in 19" rack
- On-board computer and touchscreen for easier on-site control
Up to 6 gas channels
- Can be remotely controlled via Ethernet communication USB port on front panel for project upload
- Compliant with ISO 6145-7
Key Features:
- Number of gas channels: 2 to 6
- Gas inlet pressure: 3 bar(g) nominal, max 8 bar(g)
- Outlet pressure: atmospheric, higher on request
- Connections: 1/8′ Swagelok, others on request
- Gas compatibility: pure gases, concentrated gas mixtures, most aggressive gases (contact us for specific information)
- Performance Features Mixing:
- Simultaneous mixing of up to 6 channels
- Dilution ratio: up to 1:10000
- Flow accuracy: ±1% of setpoint
- Flow repeatability: <0.1% of reference point
- Response time to reference point: <5 sec.
